Sand 3D printers from ExOne® support sandcasting applications across industries, allowing our customers to innovate and provide enhanced design options and solutions for their clients.
The future of industrial development continues to place high demands on foundries and suppliers. Sand 3D printing is at the beginning of its potential.
As the leader in Additive Manufacturing of 3D sand printing, ExOne offers solutions for complex and increasing customer demands that cannot be realized by any other production process. Incorporating ExOne sand mold and core systems helps enhance operations and creates efficiencies for industrial manufacturers moving forward into industry 4.0. Our sand 3D printers can support prototyping, serial production, and parts on demand. Learn more about the versatility afforded by sand 3D printers and how our systems can conform to the specialized requirements of your process.

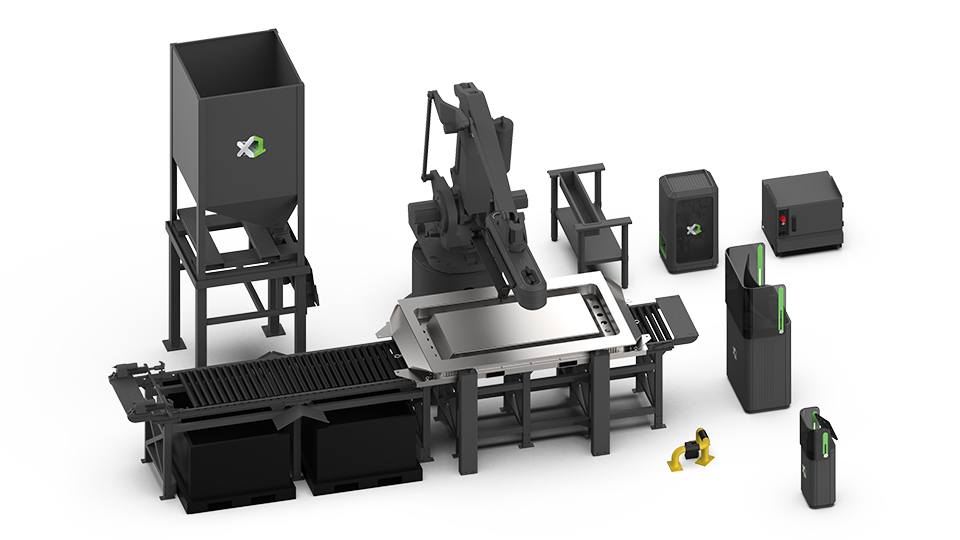

The most affordable sand 3D printer to ever be offered by ExOne, the S-Max Flex was developed to provide faster payback and easy integration into digital casting operations. The all-new additive robotic manufacturing system features an industrial robot with an end effector using advanced Single-Pass Jetting (SPJ) to binder jet into a telescoping job box.

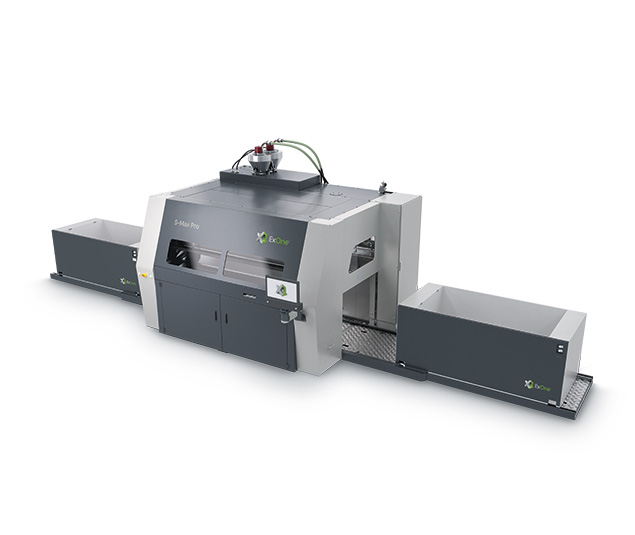

The S-Max® Pro covers the full range of 3D sand printing from prototyping to serial production and is able to process all ExOne binder systems. It is available as a stand-alone solution but is also scalable and can be connected by a network that creates a fully automated production line, to realize the industrial serial production in 3D sand printing.
Build Box 1,800 × 1,000 × 700* mm (70.9 × 39.4 × 27.6 in) (L × W × H)
Create complex sand cores and molds directly from 3D CAD data. The S-Print® 3D core and sand mold system combines a compact structure with an extremely versatile range of applications. With the flexibility to select any binder system available at ExOne, S-Print sand molds can be made to accommodate a variety of casting materials for rapid product development and short run production.
Build Box 800 × 500 × 400 mm (31.5 × 19.7 × 15.8 in) (L × W × H)
The S-Max® 3D core and sand mold system, ideally suited for sandcasting foundries, creates complex sand cores and molds directly from 3D CAD data, eliminating the need of a physical pattern. The ability to cast in hours without hard tooling improves the entire casting process chain. Realize new efficiencies with our largest build platform.
Build Box 1,800 × 1,000 × 700 mm (70.9 × 39.4 × 27.6 in) (L × W × H)
